Complete Case IH Magnum-MX Series LED Light Kit - Petersen Parts

Complete Case IH Magnum-MX Series LED Light Kit

$ 1,153.99

Share this Product


Use this complete plug and play replacement LED Light Kit for all Hood, Front and Rear Upper Cab, Rear Fender and Windshield Lights on Case IH® Magnum and MX Series tractors.

These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle severe environmental conditions.

Features:

  • Tiger Lights CASEKIT4 Light Kit
  • Flood or amber flashing/flood beam pattern
  • 37,200 effective lumens
  • 396 watts
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install
  • Use original mount and wiring

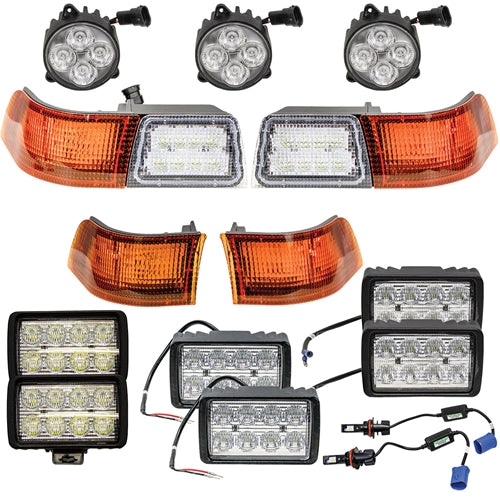

  • Kit includes: 15 lights (3 front hood, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 windshield lights), connectors, adapters and hardware

Front Hood Light Features (TL6020 Light):

  • 3 LED lights are 3.37" diameter x 2" depth
  • Flood beam pattern
  • 3,200 effective lumens
  • 4 LED’s
  • 32 watts
  • 2.6 amp draw
  • Plug and play wiring for easy install

Left-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (TL6120L Light):

  • 1 LED light
  • Amber flashing/flood beam pattern
  • Amber light watts: 17W + 12W resistor
  • Amber light: 2.4 amp draw
  • White light: 3,000 effective lumens
  • White light: 30 watts
  • White light: 3.3 amp draw
  • Plug and play wiring for easy install

Right-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (TL6120R Light):

  • 1 LED light
  • Amber flashing/flood beam pattern
  • Amber light watts: 17W + 12W resistor
  • Amber light: 2.4 amp draw
  • White light: 3,000 effective lumens
  • White light: 30 watts
  • White light: 3.3 amp draw
  • Plug and play wiring for easy install

Left-Hand Rear Upper Cab Corner Amber Light Features (TL6130L Light):

  • 1 LED light
  • Amber flashing/flood beam pattern
  • Watts: 17W + 12W resistor
  • 2.4 amp draw
  • Plug and play wiring for easy install

Right-Hand Rear Upper Cab Corner Amber Light Features (TL6130R Light):

  • 1 LED light
  • Amber flashing/flood beam pattern
  • Watts: 17W + 12W resistor
  • 2.4 amp draw
  • Plug and play wiring for easy install

Rear Upper Cab Light Features (TL3030 Light):

  • 2 LED lights are 6" x 3.5" x 3" (W x H x D)
  • Flood beam pattern
  • 3,600 effective lumens
  • 8 LED’s
  • 40 watts
  • 3.33 amp draw
  • Bottom mount
  • Plug and play wiring for easy install

Rear Fender Light Features (TL3085 Light):

  • 2 LED lights are 6" x 3.5" x 3" (W x H x D)
  • Flood beam pattern
  • 3,600 effective lumens
  • 8 LED’s
  • 40 watts
  • 3.33 amp draw
  • Comes with a hollow bolt to easily run the wire to hide under the fender
  • Plug and play wiring for easy install

Windshield Light Features (TL3075 Light):

  • 2 LED lights are 6" x 3.5" x 3" (W x H x D)
  • Flood beam pattern
  • 3,600 effective lumens
  • 8 LED’s
  • 40 watts
  • 3.3 amp draw
  • Side mount bracket
  • Installation may require wire splicing into original wiring

LED Headlight Conversion Kit - Hi/Lo Features (TLHL-9007 Light):

  • 9007 bulb
  • Hi/lo beam
  • Lifespan of 10,000+ hours
  • 6000 kelvin color temperature
  • 360° heat dissipation
  • Designed for a simple and quick installation to replace factory-installed bulb
  • Plugs directly into vehicle’s factory harness

Replaces all hood, front and rear upper cab, rear fender and windshield lights (3 front hood, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 windshield lights).
Manufacturer's Limited Lifetime Warranty

Please Note: Light will bolt directly into factory light housing.
